New Item

Transparent, moisture vapor barrier and anti-static bagss:STAT-MBP

Transparent, moisture vapor barrier and anti-static bagss:STAT-MBP

<Features>

STAT-MBP is the long-acting non-chargeable olefin, and two 3-layer moisture-proof bag. Polyethylene film with nylon makes excellent moisture-proof & transparent film which is not like a aluminum foil, high-performance product.

Test Items Unit Other STAT-MBP General
nylon&polyethylene
(Company A)
Method
Tensile yield point stress MPa MD 38.7 22.8 JIS K 7127
TD 33.1 22.1
Tensile rupture stress MPa MD 34.7 42.4
TD 34.6 43.4
Elongation % MD 158 409
TD 233 423
Moisture vapor
transmission
g/m10.d Outside 3 9.1 JIS Z 0208
Surface Resistivity Ω/□ 1010 25 Celsius
50% RH
Static Decay Rate 5000V to 50V less than 2 seconds 25 Celsius
50% RH
Remarks Anti-static General nylon & polyethylene

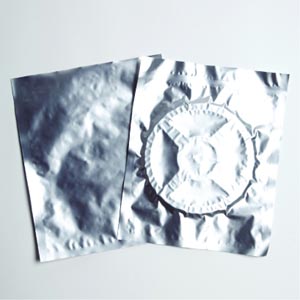

ESD Shielding and moisture vapor barrier bagsST-678

ESD Shielding and moisture vapor barrier

For moisture vapor, gas barrier film of anti-satac

<Features>

Hi-quality moisture and gas barrier film

Using reliable STAT-3S for the most inner layer

Tough and strength film

[Layer]

Anti-static coating NY(Nylon15µ/PE15µ/AL7µ/PE15µ/STAT-3S50µ (Total: 102µ)

ST-678 (Standard bags)
Size
(with 10mm sealing)
Qnty/1case Notch (cut)
250mmx400mm 100pcs/case Both side
(50mm from the bottom)
300mmx400mm same as the above same as the above
300mmx500mm same as the above same as the above
500mmx500mm same as the above same as the above

Transparent, moisture vapor barrier and anti-static bagssCera-PET

Transparent, moisture vapor barrier and anti-static bags


Transparent, Moisture vapor, Anti-Static film



<Features>

Environmental measures packing materials

It is a dampproofing gas barrier film by ceramic vacuum evaporation without using aluminum foil and a vinylidene chloride.

Stable resistance value is effective in using tree STAT-3S for the most inner layer semipermanently.

[Layer]

S-type
Anti-static coating, ceramic vacuum evaporation PET 12 /S-LDPE 25 /STAT-3S 50

B-type
Anti-static coating, ceramic vacuum evaporation PET 12 /ONY 15
/S-LDPE 20/STAT-3S 50
