Anti-Static bag & film

STAT‐3S Bio (Eco-friendly Anti-Static film)

Japan Bioplastics Association certified product

Eco-friendly antistatic film that incorporates plant-based plastics into the persistent antistatic STAT-3S and reduces CO2 emissions.

It is possible to print the mark certified by the Japan Bioplastics Association on bags and sheets.

---

STAT-Excellent Film (High performance antistatic film)

1. STAT-Excellent Film (STAT-EF)
(High performance antistatic film)

High spec film with surface resistance of 10⁸Ω
(Measurement environment: 23 ° C × 50% RH)

1. There is no concern about the migration of the antistatic agent , because this film is used by a polymer type non-charged resin.

2. There is not humidity dependence, and Static Decay time is extremely short, and stable surface resistance is maintained.

2. STAT-Excellent Film Weatherability (STAT-EFW)
(High-performance anti-static with weathering film)

High spec film with surface resistance of 10⁸Ω
(Measurement environment: 23 ° C × 50% RH)

1. There is no concern about the migration of the antistatic agent , because this film is used by a polymer type non-charged resin.

2. There is not humidity dependence, and Static Decay time is extremely short, and stable surface resistance is maintained.

3. This film is weather resistance.

---

Flexible container bag inner package: STAT-FCB

International standard pass certificate

EU regulation No10/2011 Dry use declaration

Best for grocery and FIBC grocery additives inner bag.

Packaging material that has been specialized for powder.
Ideal for pharmaceutical intermediates raw materials.

<Features>

1. Because of using a polymer type antistatic resin, it does not change in quality by a 　 　 switchover any of additive material to your product in this bag.

2. There is not humidity dependence, and Static Decay time is extremely short.

3. Static decay time from 5000V to 50V is less than one second.

4. International standard IEC61340-4-4 L2 passed (SWISSI Process Safety GmbH) 2010
　 JIS C 61340-4-4 Compliant

5. Products by only FDA compatible raw materials.
　 We got FIBC inner bag standards for various food products.

Test items (Unit)	Conditions Degree RH	Measured value
Surface Resistivity (O/Sq)	23±2 Degree 20±5%	5.96±0.69×1011
	23±2 Degree 60±10%	7.94±1.35×1010
Static Decay Rate + / - (sec)	23±2 Degree 20±5% 5,000V 1%Attenuation	Outside 0.1 > / 0.1 >
		Inside 0.1 > / 0.1 >
Tensile test MD/TD (MPa)	500mm/min	0.08 t 48.0/35.9
		0.1t 43.5/39.1
Tear test MD/TD (N/mm)	500mm/min Graves Tear	0.08t 145/151 0.10t 148/152
Moisture permeability exterior to inner (g/m2d)	40Sq×90%RH Cup method	0.08t 7.08 0.10t 5.56

* These are typical measurement values, so these are not standard values.

Product size
Thickness:0.05mm - 0.08mm
Width:1500mm - 2100mm

We have stocked as standard size of 0.08mm×1900mm. It is available for cutting your size.

Please contact us if you would like to have other sizes and special shapes bag.

EU regulation No10 / 2011 Dry use Declaration.
Ministry of Health, Labour and Welfare Notification No. 201 pass.

---

STAT-FDM: FDA Anti Static film

Ministry of Health and Welfare Notification No. 370
Patent No. 4948997

NON AMINE ANTI-STAIC(NON-SURFACTANT),POLYMER ANTI-STATIC BAG

<Features>

Approved in notice of Ministry of Health and Welfare no.370

Example: A bag inside plastic, drum and carton boxes.

1. prevent an electrostatic obstacle and a powder explosion by materials.
(FDA§177,1330，§177,1520(a)(3)(i)(a)(1)§178,2010)

2. Based on MIL-PRF-81705D, an ASTM-D257 standard as the prevention of electric obstacle.

3. For 25kg bag: A characteristic of a tough material and a heat seal bag of stable consistency strength.

4.The anti-static character keeps high performance even if it is low temperature, high temperature and high humidity.

5. The anti-static character keeps high performance even though the film get wet, wipe and rub.

Size:

Thickness: 0.05mm - 0.1mm
Width: 150mm - 1000mm

SIZE			Qnty/1case
Thickness	Width	Length
0.1mm	960mm	1690mm	50

---

Round bottom anti-static bag for 200L drum

Build-to-order manufacturing

Please feel free to contact us.

Example:Inner bag for 200L drum

1.FDA conformity material's anti-static film which is passed on Ministry of Health and Welfare notification 370th.

2.Surface Resistivity is less than 10¹¹Ω, and static decay late is less than 2 seconds (23 degree ×12±3%RH 5000V to 50v)

3.It is used by anti-static materials of high-molecular form, so that transitivity is very low.

4.Inner package in consideration of strength and anti-static measures.

5.Intermediates for pharmaceutical, food powder and liquids for inner package of drum.

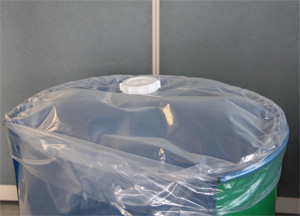

The photograph is part of the roof and body of STAT-FDM C22

---

Transparent, moisture vapor barrier and anti-static bagss:STAT-MBP

<Features>

STAT-MBP is the long-acting non-chargeable olefin, and two 3-layer moisture-proof bag.
Polyethylene film with nylon makes excellent moisture-proof & transparent film which is not like a aluminum foil, high-performance product.

Test Items	Unit	Other	STAT-MBP	General nylon&polyethylene (Company A)	Method
Tensile yield point stress	MPa	MD	38.7	22.8	JIS K 7127
		TD	33.1	22.1
Tensile rupture stress	MPa	MD	34.7	42.4
		TD	34.6	43.4
Elongation	%	MD	158	409
		TD	233	423
Moisture vapor transmission	g/m10.d	Outside	3	9.1	JIS Z 0208
Surface Resistivity	Ω/□		1010		25 Celsius 50% RH
Static Decay Rate	5000V to 50V		less than 2 seconds		25 Celsius 50% RH
Remarks			Anti-static	General nylon & polyethylene

Size: Thickness 0.1mm ~ Width 150mm ~ 650mm

---

STAT-3SN:Transparent Anti-Static Name Holder

*It will end when it is out of stock.

(Additive-Free Anti-Static PE + PP)
This holder does not "Breed Out" because of using Additive-Free Antistatic film(STAT-3S).

<Features>

Polypropylene (PP) & Anti-Static film (STAT-3S) Two kinds of three levels sheet.

Surface resistance: Outside is less than 10¹¹Ω / Inside is less than 10¹¹Ω

[Layer]

STAT-3S PP300µ

With a clip and a safety pin	50pcs
	100pcs
	500pcs
	1,000pcs

---

STAT-3SF:Transparent Anti-Static file holder

(Additive-Free Anti-Static PE + PP)
This holder does not "Breed Out" because of using Additive-Free Antistatic film(STAT-3S).

<Freatures>

Polypropylene (PP) & Anti-Static film (STAT-3S) Two kinds of three levels sheet.

Surface resistance: Outside is less than 10¹¹Ω / Inside is less than 10¹¹Ω

Excellent transparency.

[Layer]

STAT-3S PP300µ

Size	Qnty
(A4) 220mm X 310mm *100pcs=about 5kg	1,000
	500
	100
	10

Size	Qnty
(A3) 310mm X 435mm *100pcs=about 10kg	1,000
	500
	100
	10

---

Additive-Free Anti-Static film: STAT-3S

Anti-Static Polyethylene film (Slip-type & Non-slip-type)

<Features>

STAT-3S polymer itself satisfied with an anti-static "Safety", "Stability" and "Satisfactory" for non-charging with electricity characteristics.

STAT-3S does not change in quality by a switchover any of additive material to your product in this bag.

There is not humidity dependence, and Static Decay time is extremely short.

There is an effect in stable resistance value semipermanently less than 10¹⁰ internal Ω and less than 10¹¹ surface resistance value outside Ω.

Processing: gusset bag, square bottom bags, zipper bags, and other special processing.

Color:Blue,Green,Pink,Natural(Available for special orders)

STAT-3S "Blue,Slip-Type"(Standard bag)

No.	Size(mm)			Qnty/1case	Weight/1case (about)
	Thickness	Width	Length
3S-0715	0.05	70	150	2,000	3kg
3S-1015	0.05	100	150	2,000	4kg
3S-1020	0.05	100	200	2,000	5kg
3S-1525	0.05	150	250	2,000	8kg
3S-2030	0.05	200	300	1,000	7kg
3S-2535	0.05	250	350	1,000	9kg
3S-3040	0.05	300	400	500	7kg
3S-3545	0.05	350	450	500	9kg
3S-4050	0.05	400	500	500	11kg

---

Anti-Static film (An antistatic agent type): STAT-A

<Features>

Versatility & low-priced Anti-Static bag.

Surface resistance value: less than 10¹¹Ω

Thickness: 40µ - 150µ Width: 50mm - 1200mm
(Special order from 1000m is available.)

Z bag and corner bottom bag are also available.

Color:Blue,Green,Pink,Natural,Yellow(Available for special orders)

STAT-A "Blue" (Standard sheets)

Thickness	Width	Length	Qnty/1case
0.05mm	1200mm	200M	2pcs

*Other sizes are production by order.
